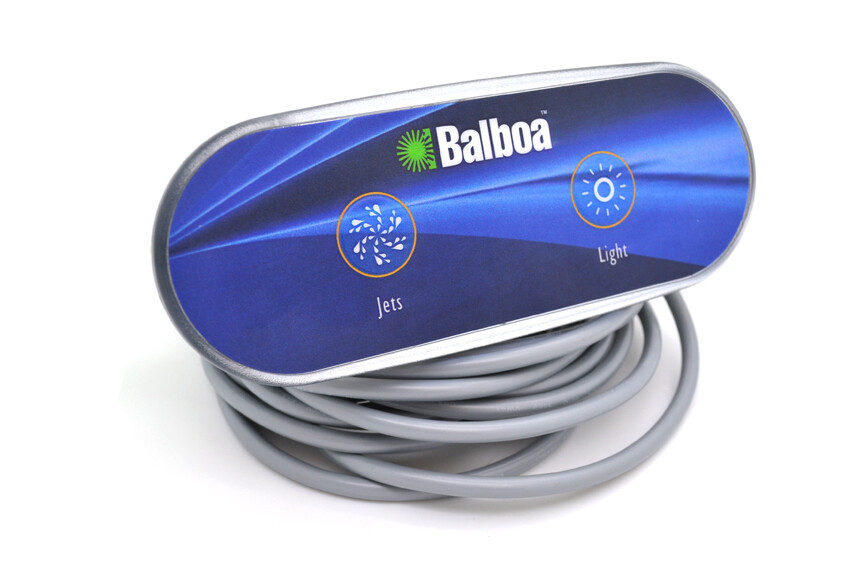

Balboa AX20 Control Panel With Overlay
This AX20 Balboa control panel / touchpad is a simple two-button panel with no display. This panel is used to locate the control of two functions away from the main control panel.
Depending on the system, more than one AX20 can be installed and mapped to operate two spa functions. The connection has 6 pins (2 rows of 3)
The AX20 can be configured for various Aux combinations, ie: Aux1 & 2 and Aux 3 & 4. Specify which Aux features you need in the panel when configuring a system.
Dimensions
Diameter: 150mm
Hole required: 89mm x 31mm
Cable length: 5m
Button Configuration
The AX20 can come with various button configurations, this complete item has the following configuration:
jets1 + light
If your button configuration differs from this we offer a variety of front face sticker below for additional purchase.
Ideal For
The AX 20 panel can be used all GL systems including GL2000 and GL8000.
Route the cable through conduit in order to isolate it from any foam insulation that may be applied.
