LX JA35, JA50, JA75, JA100 Circulation Pumps
£113.29
Price incl.
VAT (20%)
£18.88
Item
In stock
Product Details
Brand:
LX

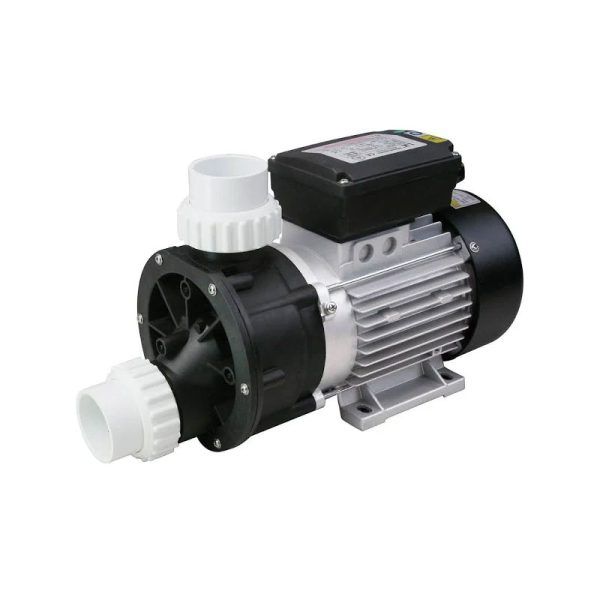

The JA range of Chinese circulation pumps come complete with unions for fitment
Dimensions
JA35 / JA50 / JA75:
Length: 325mm
Width: 155mm
Height: 185mm
JA100
Length: 350mm
Width: 160mm
Height: 205mm
Specifications
| JA35 | JA50 | JA75 | JA100 |
|---|---|---|---|
| Amps: 1.6 | Amps: 2 | Amps: 3.2 | Amps: 3.8 |
| Volts: 230 | Volts: 230 | Volts: 230 | Volts: 230 |
| Hz: 50 | Hz: 50 | Hz: 50 | Hz: 50 |
| RPM: 2900 | RPM: 2900 | RPM: 2900 | RPM: 2900 |
| Motor KW: 0.25 HP: 0.33 | Motor KW: 0.37 HP: 0.5 | Motor KW: 0.55 HP: 0.75 | Motor KW: 0.75 HP: 1 |
| Capacitor: 7uf | Capacitor: 7uf | Capacitor: 10uf | Capacitor: 15uf |
| Fittings: 1.5 inch | Fittings: 1.5 inch | Fittings: 1.5 inch | Fittings: 1.5 inch |
Ideal For
These pumps are commonly found on spas in the UK including AMC Winer Spa, Chinese Spas, Spa Serve.
If you can't find a replacement for your DXD-8A, then the JA50 is the closet equivalent - some work may need to be undertook
The JA50 is a direct replacement for the Monarch Spanet XS-3C
The JA100 is a replacement for: Rocoi LDPB-140B, it is the same as the DXD pump and EA350 pump
The JA50 is Wellis Part Number ACM0077
Additional Info
Comes complete with cable.
